Morspeed Race Engines
Cylinder Head
Gearbox
Engine & Parts
Morspeed assembled short engines are ideal for the engine builder who already has a serviceable cylinder head and gearbox, all our short engines are precision machined, cleaned, cam timing set, painted and come with top quality parts built into a powerfull and reliable unit.
Please note that the prices include a refundable surcharge, to receive this refund, send us your old short engine within 4 weeks. If the returned items are in serviceable condition, we will process your refund promptly.
However, if the engine or components are too damaged and cannot be repaired, we will not be able to issue a refund.
Please note that the prices include a refundable surcharge, to receive this refund, send us your old short engine within 4 weeks. If the returned items are in serviceable condition, we will process your refund promptly.
However, if the engine or components are too damaged and cannot be repaired, we will not be able to issue a refund.
CONTACT
PRODUCTS
Morspeed Race Engines
998cc - 1275cc STANDARD

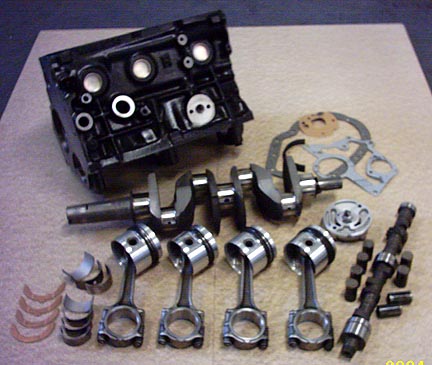

A completely standard 998cc or 1275cc assembled short engine machined to a finish far superior than when it left the factory and built with quality parts.
Cylinder block: Chemically cleaned, gasket faces cleaned and all threads checked, freshly bored to its next available size, cross hatched honed and fitted with new cam bearings, re-surfaced on the head gasket face then painted and fitted with new oil plugs and water core plugs.
Crankshaft: Micro polished STD size or re-ground to the next available size, supplied with O.E material mains and big end bearings, new STD size thrust bearings.
Conrods: Matched set checked for alignment, new bolts and fitted with new dished or flat top pistons (depending on application)
Camshaft & parts: Camshaft is a Kentcams 246 touring profile, new high grade cam followers, new simplex timing chain & tensioner, new oil pump.
Gaskets are supplied to assemble the kit.
998cc - 1275cc
Crankshaft: Micro polished STD size or re-ground to the next available size, supplied with O.E material mains and big end bearings, new STD size thrust bearings.
Conrods: Matched set checked for alignment, new bolts and fitted with new dished or flat top pistons (depending on application)
Camshaft & parts: Camshaft is a Kentcams 246 touring profile, new high grade cam followers, new simplex timing chain & tensioner, new oil pump.
Gaskets are supplied to assemble the kit.
998cc A+ £1,850 inc £350 surcharge PRE ORDER 2 IN PROCESS
998cc -1100cc PRE A+ £1,850 inc £350 surcharge PRE ORDER 2 IN PROCESS
1275cc A+ £1,950 inc £450 surcharge PRE ORDER OUT OF STOCK
*Prices include the surcharge which is refundable upon the return of a serviceable unit
1275cc PRE A+ £1,950 inc £450 surcharge PRE ORDER OUT OF STOCK

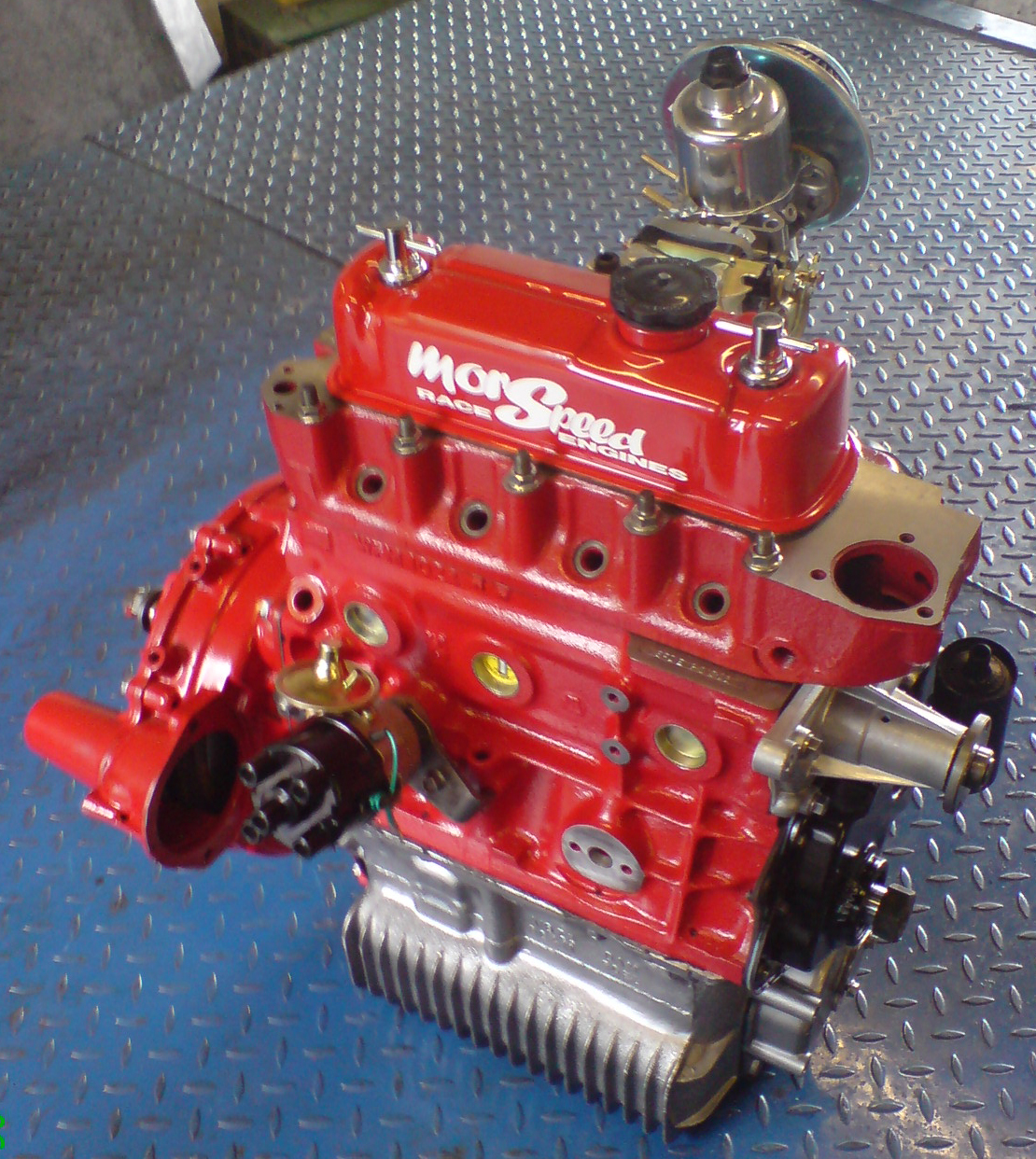

Morspeed fully assembled engines are built and test bed run for approximately 2 hours before they leave using our own test bed ancillaries, (or your own if supplied) this allows us to check for any leaks or problems it also allows us to check the clutch is set correctly and all gears select as they should. we can also dyno power test and set up your engine for an extra cost.
Buying a fully assembled unit gives complete piece of mind, most of the engines we build are bespoke to the customer.
Below are examples of our most popular units.
Buying a fully assembled unit gives complete piece of mind, most of the engines we build are bespoke to the customer.
Below are examples of our most popular units.
998cc - 1275cc STANDARD
998cc - 1275cc FAST ROAD
Complete engine assembled using our standard short engine, Standard fully re built gearbox and standard cylinder head, re built std rocker assembly, fitted with a new water pump, new clutch unit and transfer gears set to the correct tolerance.
Test bed run and ready to fit your ancillaries.
Test bed run and ready to fit your ancillaries.
PRODUCTS
CONTACT
TEL: 07507 105353
EMAIL: morspeedraceengines@gmail.com
FULL ENGINES
998cc - 1275cc FAST ROAD
Fast road 998cc or 1275cc assembled short engine machined to a finish far superior than when it left the factory and built with quality parts.
Cylinder block: Chemically cleaned, gasket faces cleaned and all threads checked, freshly bored to +060 size, cross hatched honed and fitted with new cam bearings, re-surfaced on the head gasket face then painted and fitted with new oil plugs and water core plugs.
Crankshaft: Micro polished STD size or re-ground to the next available size, Dynamically balanced, supplied with performance material mains and big end bearings, new STD size thrust bearings.
Conrods: Matched set checked for alignment, balanced end to end, new bolts and fitted with new dished or flat top pistons (depending on application)
Camshaft & parts: Camshaft is a Kentcams 276 fast road profile, new high grade cam followers, new duplex timing gear set & tensioner, new oil pump.
Gaskets are supplied to assemble the kit.
Flywheel: Lightened and balanced flywheel fitted with a new clutch plate and pressure plate.
Crankshaft: Micro polished STD size or re-ground to the next available size, Dynamically balanced, supplied with performance material mains and big end bearings, new STD size thrust bearings.
Conrods: Matched set checked for alignment, balanced end to end, new bolts and fitted with new dished or flat top pistons (depending on application)
Camshaft & parts: Camshaft is a Kentcams 276 fast road profile, new high grade cam followers, new duplex timing gear set & tensioner, new oil pump.
Gaskets are supplied to assemble the kit.
Flywheel: Lightened and balanced flywheel fitted with a new clutch plate and pressure plate.
998cc A+ £2,120 inc £350 surcharge PRE ORDER 2 IN PROCESS
998cc -1100cc PRE A+ £2,120 inc £350 surcharge PRE ORDER 2 IN PROCESS
1275cc A+ £2,220 inc £450 surcharge PRE ORDER OUT OF STOCK
1275cc PRE A+ £2,220 inc £450 surcharge PRE ORDER OUT OF STOCK
PRODUCTS
998cc - 1275cc BIG BORE
Big bore 998cc or 1275cc assembled short engine designed to release the full potential of the A Series.
machined to a finish far superior than when it left the factory and built with quality parts.
machined to a finish far superior than when it left the factory and built with quality parts.
Cylinder block: Chemically cleaned, gasket faces cleaned and all threads checked, freshly bored to +080 for the 998cc (1014cc) and 73.5mm for the 1275cc (1380cc) cross hatched honed and fitted with new cam bearings, 11-stud if requested, machined & supplied with a centre main strap, re-surfaced on the head gasket face then painted and fitted with new oil plugs and water core plugs.
*998cc block can be pocketed to suit a 1275cc head for an extra £110
Crankshaft: Re-ground to the next available size, Dynamically balanced, supplied with performance material mains and big end bearings, new STD size thrust bearings.
Conrods: Matched set checked for alignment, balanced end to end, new bolts, and fitted with new dished or flat top Powertune pistons (depending on application)
Camshaft & parts: Camshaft is a choice from the Kentcams range, new high grade cam followers, new vernier duplex timing gear set & tensioner, new oil pump.
Gaskets are supplied to assemble the kit.
Flywheel: Lightened and balanced flywheel fitted with a new clutch plate and pressure plate.
998cc - 1275cc BIG BORE
*998cc block can be pocketed to suit a 1275cc head for an extra £110
Crankshaft: Re-ground to the next available size, Dynamically balanced, supplied with performance material mains and big end bearings, new STD size thrust bearings.
Conrods: Matched set checked for alignment, balanced end to end, new bolts, and fitted with new dished or flat top Powertune pistons (depending on application)
Camshaft & parts: Camshaft is a choice from the Kentcams range, new high grade cam followers, new vernier duplex timing gear set & tensioner, new oil pump.
Gaskets are supplied to assemble the kit.
Flywheel: Lightened and balanced flywheel fitted with a new clutch plate and pressure plate.
998cc A+ £2,350 inc £350 surcharge PRE ORDER 2 IN PROCESS
998cc -1100cc PRE A+ £2,350 inc £350 surcharge PRE ORDER 2 IN PROCESS
1275cc A+ £2,450 inc £450 surcharge PRE ORDER OUT OF STOCK
1275cc PRE A+ £2,450 inc £450 surcharge PRE ORDER OUT OF STOCK
Scroll down for complete assembled engines
1275cc SPi & MPi £1,950 inc £450 surcharge PRE ORDER OUT OF STOCK
1275cc SPi & MPi £2,220 inc £450 surcharge PRE ORDER OUT OF STOCK
1275cc SPi & MPi £2,450 inc £450 surcharge PRE ORDER OUT OF STOCK
998cc A+ & PRE A+ assembled standard engine £4,320 inc £600 surcharge PRE ORDER 2 IN PROCESS
998cc A+ & PRE A+ assembled fast road engine £4,770 inc £600 surcharge PRE ORDER 2 IN PROCESS
Complete engine assembled using our fast road short engine, Standard fully re built gearbox and fast road ST3 cylinder head, re built std rocker assembly, fitted with a new water pump, new clutch unit and transfer gears set to the correct tolerance.
Test bed run and ready to fit your ancillaries.
Test bed run and ready to fit your ancillaries.
Complete engine assembled using our big bore short engine, Standard fully re built gearbox and trackday ST4 cylinder head, re built std rocker assembly, fitted with a new water pump, new up-rated clutch unit and transfer gears set to the correct tolerance.
Test bed run and ready to fit your ancillaries.
Test bed run and ready to fit your ancillaries.
998cc - 1275cc BIG BORE
998cc A+ & PRE A+ assembled big bore engine £5,100 inc £600 surcharge PRE ORDER 2 IN PROCESS
1275cc A+ & PRE A+ assembled standard engine £4,720 inc £1,000 surcharge PRE ORDER 2 IN PROCESS
1275cc A+ & PRE A+ assembled fast road engine £5,170 inc £1,000 surcharge PRE ORDER 2 IN PROCESS
1275cc A+ & PRE A+ assembled big bore engine £5,500 inc £1,000 surcharge PRE ORDER 2 IN PROCESS
Ancillaries are NOT included
